3 Bedroom Extra Large House

$289.00
Type: Floorplan

The 3 Bedroom Extra Large Model is designed for multiple usages of home. It has everything you dream of a large main bedroom, a private work office, an open concept living space, and large bedrooms for kids and family.

The living space is an open concept. Below the double-height ceiling, it is the living room and dining room.  Each room has a double glass sliding door that brings tons of daylight and outdoor scenes into the house.

The U- shape kitchen is perfect for cooking enthusiasts. With tons of storage and countertop space, you can make the 5-course meal at once with the extra needed table. And a large window by the sink brings lights into your beautiful dishes. It also includes a large pantry behind the kitchen for all the ingredients.

The main suite includes a walk-in closet and a large bath with double vanity. The other bedrooms are a good size with a wall of closet space for storing all the clothes and toys.

The upstairs attic space includes a small bathroom and a flexible open room that can be figured into a bedroom, studio, or office space.

The coolest part! The plan includes a large screen porch, where you can host your favorite outdoor summer dinner without bugs and rain.

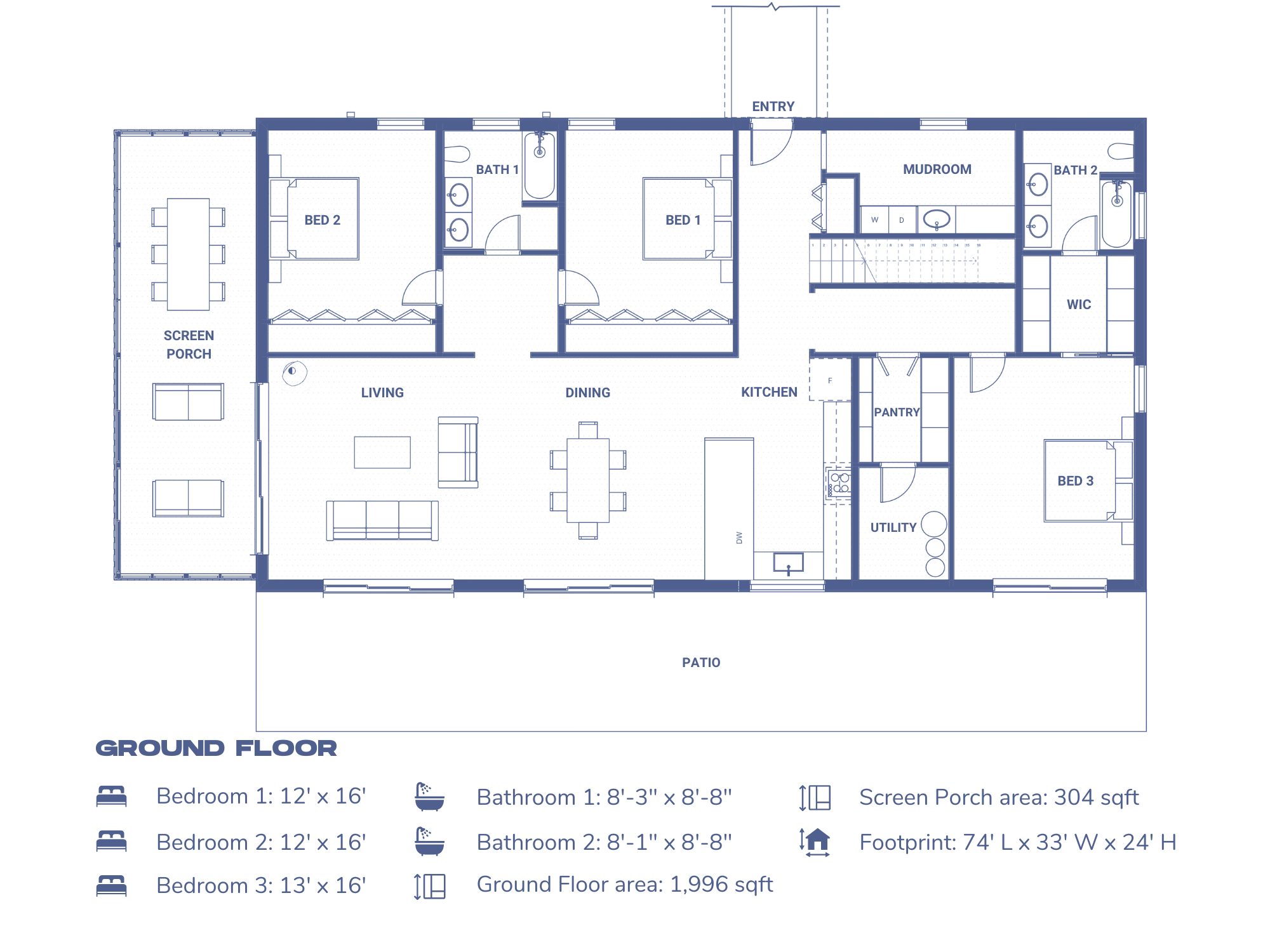

Ground floor interior area: 2,005 sqft , Porch area: 305 sqft
Dimensions: 74'-6" L X 34' W X 24' H
Master Bedroom: 13'-2" L X 15'-10" W X 10' H

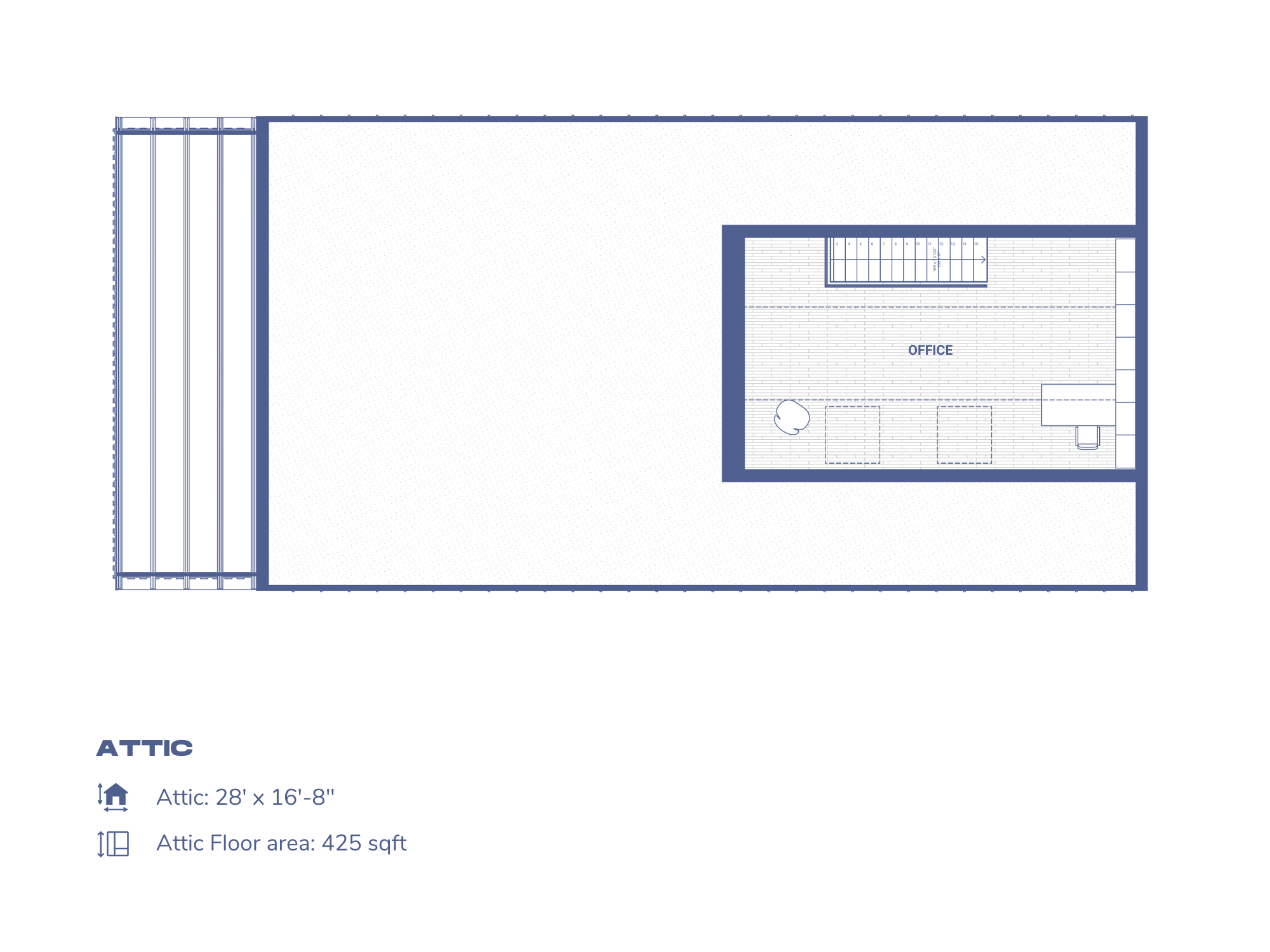

Office (Attic): 20'-5" L x 19'-1" W
Livingroom: 15' -9" L X 16'-9" W
Dining room: 13'-2" L X 16'-9" W
Kitchen: 11'-5" L X 15'-10" W
Pantry size: 6'-6" L x 10'-2" W
Living room deck: 14'-11" L x 7'-9"W
Master Bathroom: 8'-1" L x 7'-9" W
Bathroom 2: 9'-3" L x 9' W
Laundry & Mudroom: 10'-1"L x 6'-1" W
HVAC system: Mini-split, HRV, ERV

Custom Layout:  We've designed homes to adapt to your needs. Our custom layout is designed with flexibility in mind, so it can adjust and accommodate any changes or additions you might make down the line.

Basement: The home is designed to be easily customized with a basement level.

Foundation: The design can accommodate a slab-on-grade foundation.

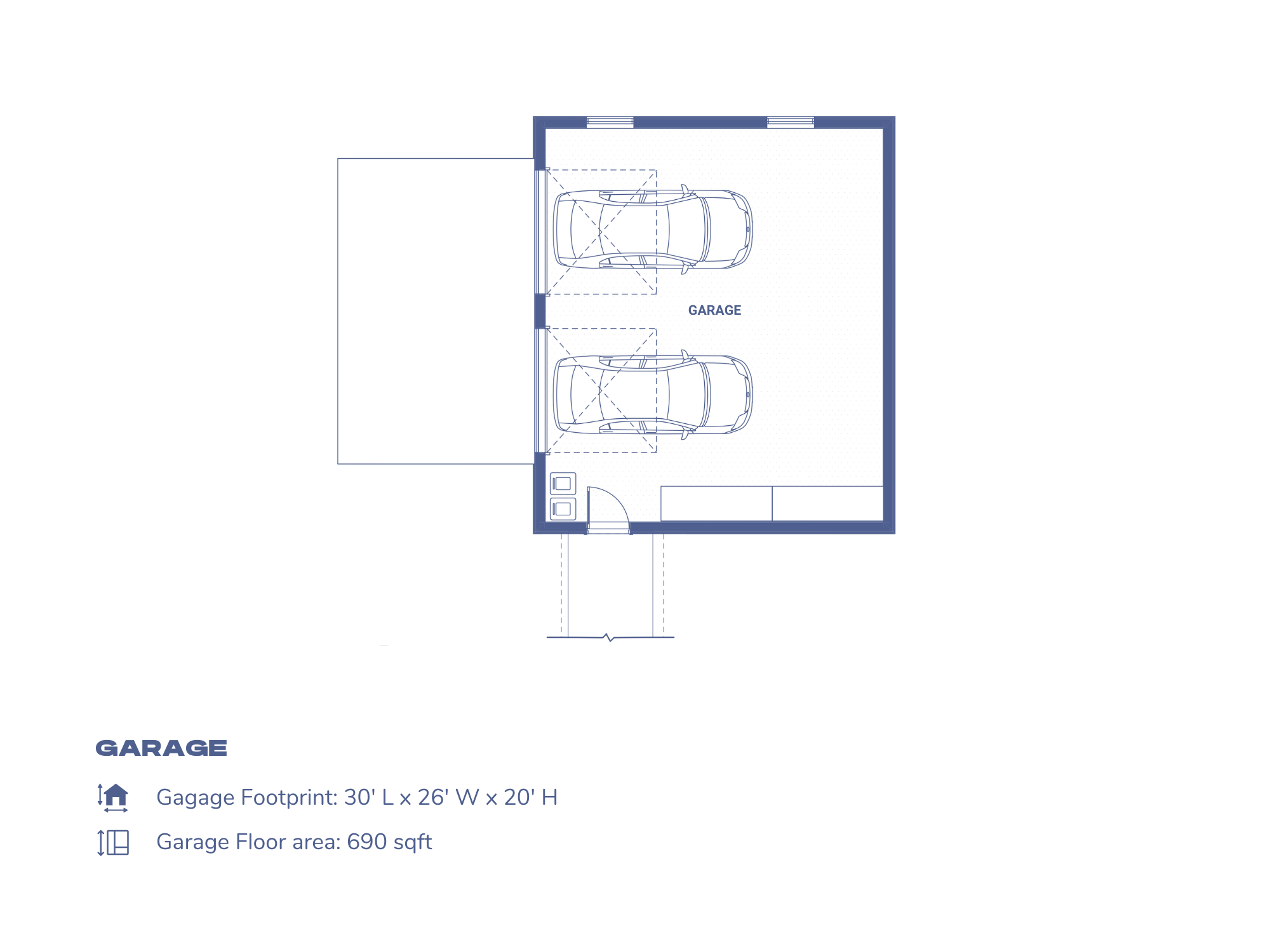

Contact us if you want more information about the garage and basement; the team will be glad to help out as much as possible.

The walls are 11" thick and composed of 2x6 studs with cellulose insulation in between, and a layer of 2 1/2" zip panels on the outside create a continuous insulation layer and close all the thermal gaps. We estimate the R-value of these walls to be 33. The roof is made of wood trusses with a raised heel to increase the thickness of the insulation to R-63.

This design uses a foundation wall with footings and a concrete slab insulated on the outside. This way, it is possible to use radiant heat supplemented with mini split units. The water heating is contained in the bathroom closet.

Most importantly, these building systems create a highly insulated house that exceeds all the US's state requirements!

The Study Set Includes:


• 12 - 15 sheets of Digital PDF Format Drawings
• Floorplans
• Exterior Elevations
• Foundation Plan
• Building Sections
• Kitchen and Bathroom elevations
• Kitchen Cabinet chart
• Wall details with materials

Designed to help you take the first step toward building your green home, the drawing pack contains everything you need to make informed choices about your home. The drawing pack comes in a digital PDF file and includes15 sheets of architectural drawings with detailed dimensions. This set can be used to get an exact cost estimate and inquire about the local permit process.

Note * The study set does not grant a license to the user to build the house using these plans. It is intended as a general inquiry and guide.

study drawing set

The Construction Set Includes:


• 24 - 26 sheets of Digital PDF Format Drawings
• Wall types with materials
• Floor plan
• Roof Plan
• Foundation Plan
• Truss Plan
• Deck Framing Plan

• Exterior Elevations
• Building Sections
• Wall Details and Eaves Details
• Windows and Doors Schedule
• Windows and Doors Details
• All Interior Elevations
• Cabinet Schedule
• HVAC and Faucet Plumbing Plan
• Duct Plan
• Electrical Plan
• Foundations details

When it comes to building your dream home, there is one thing that should always be on the agenda: obtaining a set of polished and reliable drawings. Our drawing sets contain drawings and lists such as floor plans, wall details, and all the necessary information to allow you and your builder to precisely plan your building project's duration and anticipated cost.

The construction drawing package includes 26 sheets of architectural blueprints and information! It provides everything you need to apply for your building permits right away in most states (some counties may require additional engineering or adaptations, which you can find out by reaching out to your county). By obtaining your building permit quickly, you will be able to break the ground faster.

construction drawing set

Contact us

We have designed various residential and commercial projects internationally for more than 10 years. We are offering a free 30mins-consultation to help you in your home building journey. Ask us anything!

Book a design meeting
