1 Bedroom Large House

$239.00
Type: Floorplan

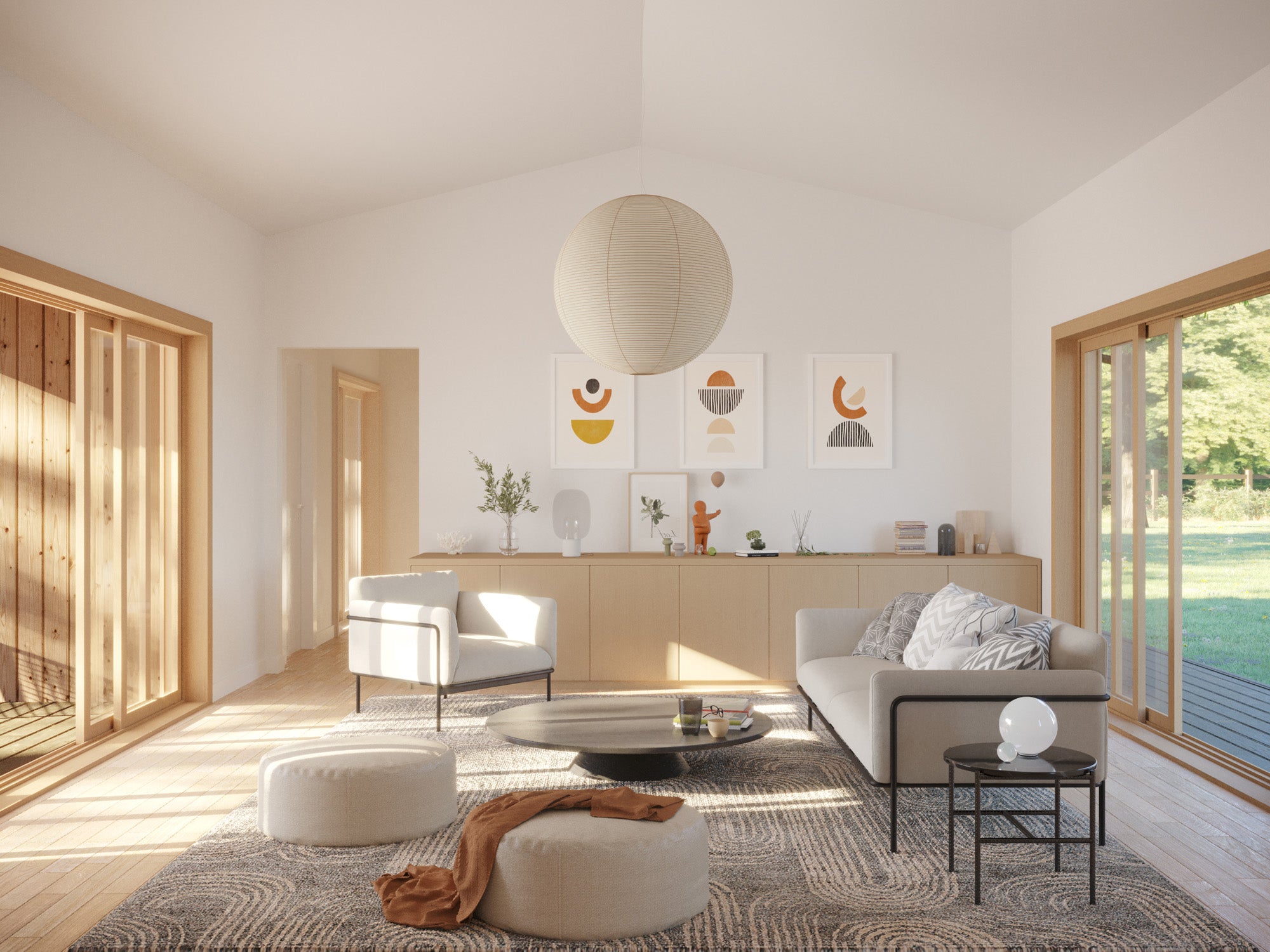

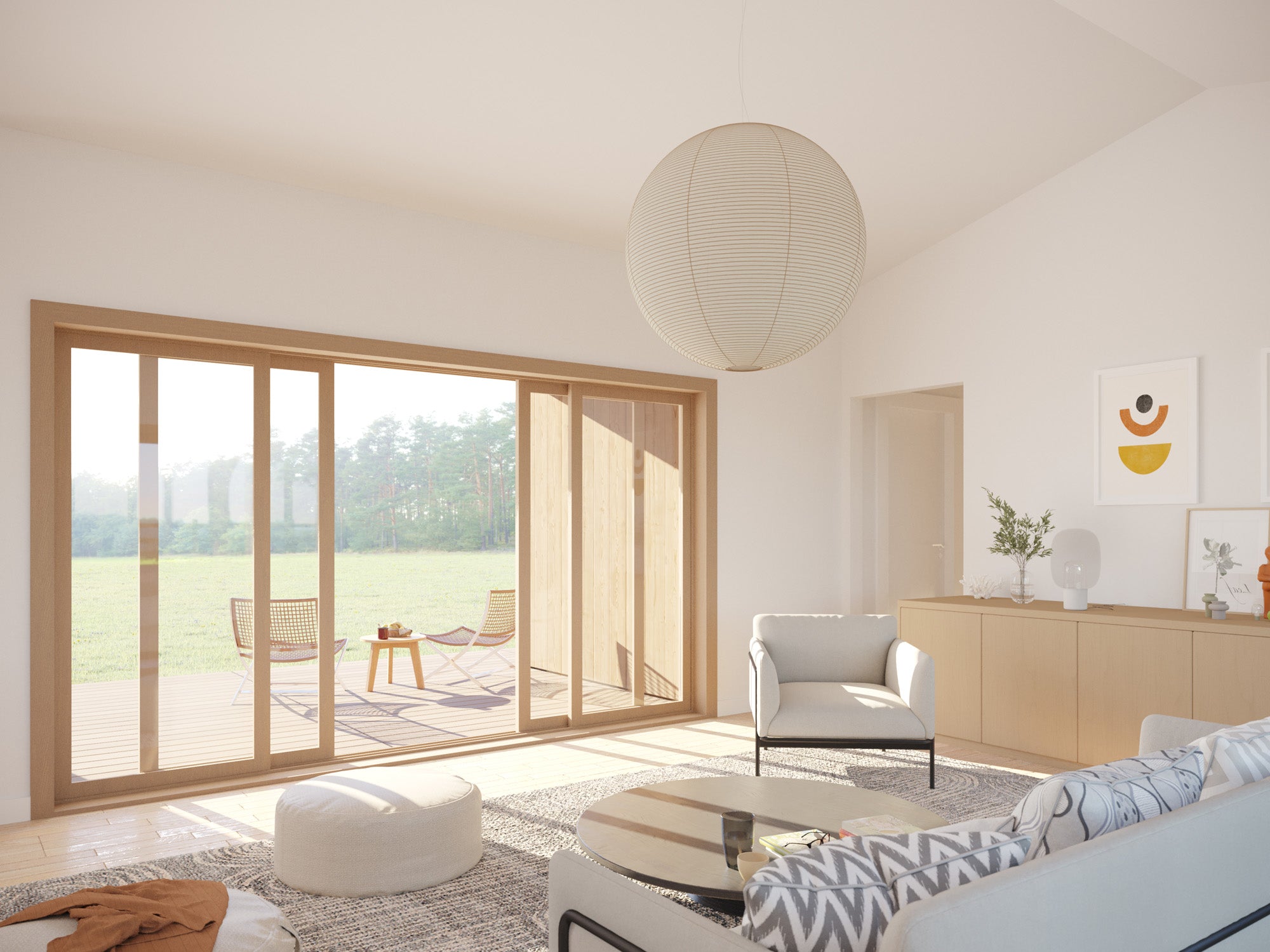

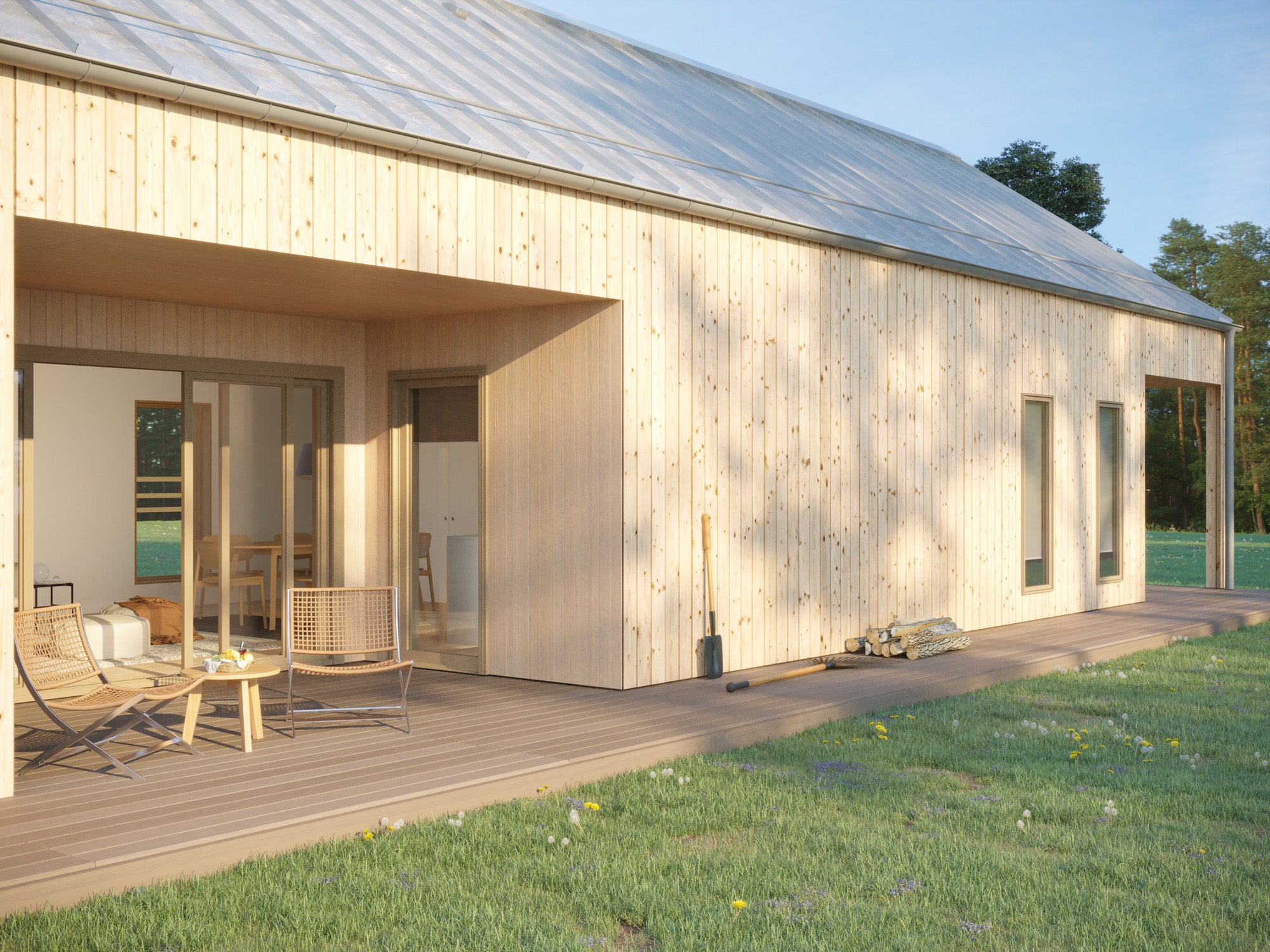

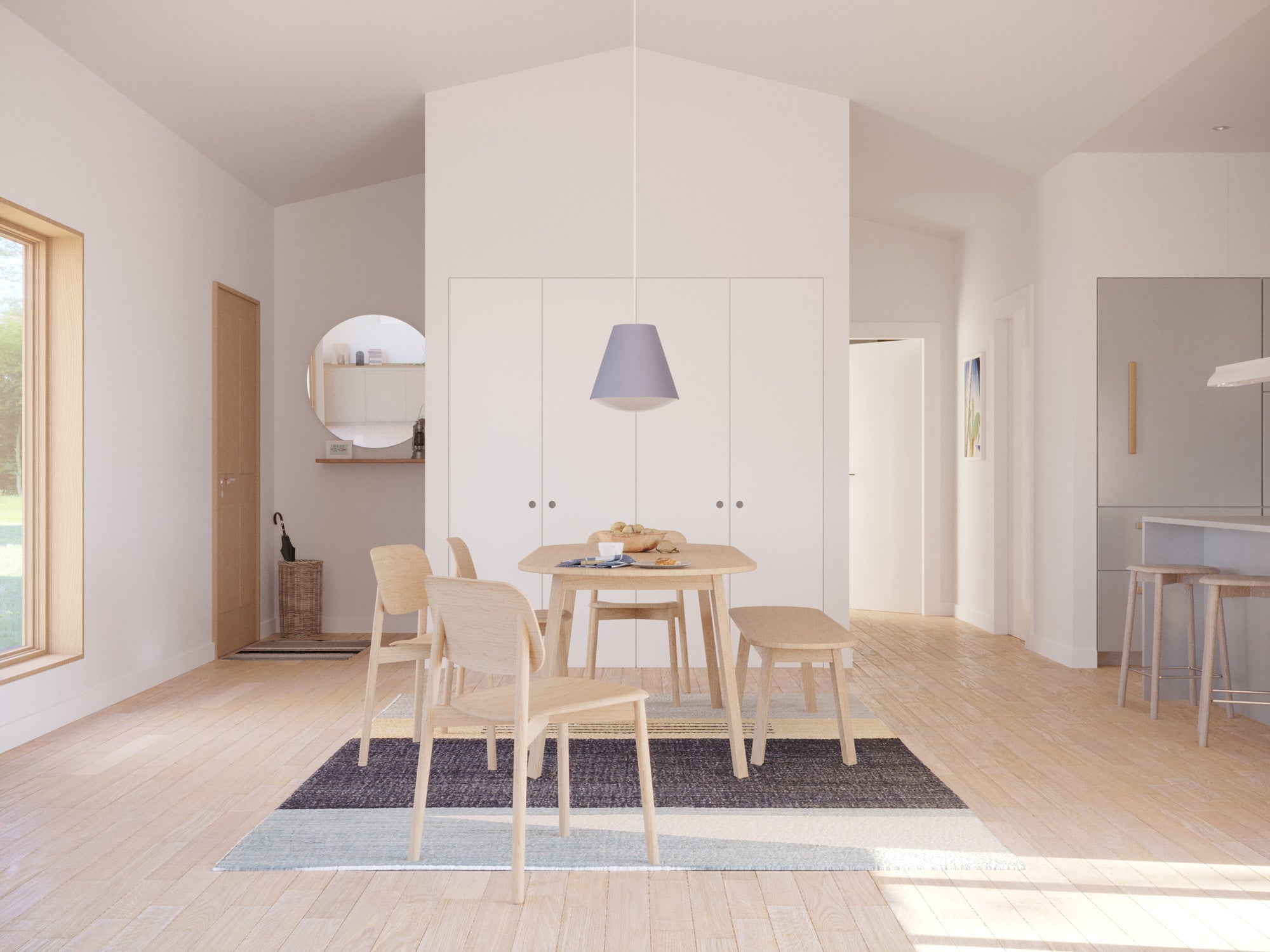

The One-bedroom is your ultimate starter home, great for singles and young couples alike. It features a comfortable living room with plenty of space to seat friends around the dinner table or works on projects together. You'll most likely find yourself throwing parties every weekend when life becomes too hectic outside, but don't worry because there's also an extra covered deck ready if they need shade during summertime showers.

This beautiful home is perfect for the modern working professional. With southern sunlight exposure, this office has everything you need! The bedroom layout includes an extra-large walk-in closet with all your clothes easily accessible from one place. In addition, there are also multiple interior closets for everything you love!

Ground floor area: 1,125 sqft
Dimensions: 57’-6” L X 25’-4” W X 20' H
Bedroom 1: 12' L X 15’-10" W
Office: 12'-5" L × 11'-0" W × 11'-6" H
Livingroom: 18’-6" L X 15’-10" W
Dining room: 12' L X 15’-10" W
Kitchen: 13'-0" L × 7'-9" W
Pantry: 4'-0" L × 3'-0" W
Living room deck size: 14'-11" L × 7'-9" W
Bathroom 1: 8'-0" L × 8'-0" W
Bathroom 2: 6'-0" L × 6'-8" W
Laundry: 5'-0" L × 6'-8" W
HVAC system: Mini-split, HRV, ERV, Radiant Floor Heat

Custom Layout:  We've designed homes to adapt to your needs. Our custom layout is designed with flexibility in mind, so it can adjust and accommodate any changes or additions you might make down the line.

Garage: The layout can accommodate detached garages with breeze walkways connecting both structures, and we have a garage design that matches this wood series perfectly!

Basement: The home is designed to be easily customized with a basement level.

Foundation: The design can accommodate slab on grade foundation.

Contact us if you want more information about the garage and basement; the team will be glad to help out as much as possible.

The walls are 10 1/4" thick and composed of 2x6 studs with cellulose insulation in between, and a layer of 2 1/2" zip panels on the outside create a continuous insulation layer and close all the thermal gaps. We estimate the R-value of these walls to be 33. The roof is made of wood trusses with a raised heel to increase the thickness of the insulation to R-63.

This design uses a foundation wall with footings and a concrete slab insulated on the outside. This way, it is possible to use radiant heat supplemented with mini split units. The water heating is contained in the bathroom closet.

Most importantly, these building systems create a highly insulated house that exceeds all the US's state requirements!

The Study Set Includes:


• 12 - 15 sheets of Digital PDF Format Drawings
• Floorplans
• Exterior Elevations
• Foundation Plan
• Building Sections
• Kitchen and Bathroom elevations
• Kitchen Cabinet chart
• Wall details with materials

* Easy upgrade. We will deduct the study set payment when you purchase the construction set.

Designed to help you take the first step toward building your green home, the drawing pack contains everything you need to make informed choices about your home. The drawing pack comes in a digital PDF file and includes 15 sheets of architectural drawings with detailed dimensions. This set can be used to get an exact cost estimate and inquire about the local permit process.

Note * The study set does not grant a license to the user to build the house using these plans. It is intended as a general inquiry and guide.

study drawing set

The Construction Set Includes:


• 24 - 30 sheets of Digital PDF Format Drawings + CAD and 3D Files
• Wall types with materials
• Floor plan
• Roof Plan
• Foundation Plan
• Truss Plan
• Deck Framing Plan

• Exterior Elevations
• Building Sections
• Wall Details and Eaves Details
• Windows and Doors Schedule
• Windows and Doors Details
• All Interior Elevations
• Cabinet Schedule
• HVAC and Faucet Plumbing Plan
• Duct Plan
• Electrical Plan
• Foundations details

When it comes to building your dream home, there is one thing that should always be on the agenda: obtaining a set of polished and reliable drawings. Our drawing sets contain drawings and lists such as floor plans, wall details, and all the necessary information to allow you and your builder to precisely plan your building project's duration and anticipated cost.

The construction drawing package includes 26 sheets of architectural blueprints and information! It provides everything you need to apply for your building permits right away in most states (some counties may require additional engineering or adaptations, which you can find out by reaching out to your county). By obtaining your building permit quickly, you will be able to break the ground faster.

construction drawing set
