4 Bedroom Lake Barndominium

Sale price$889.00

Package Type: Study Plans Package

The 4 Bedroom Lake Barndominium floorplan is designed for maximum home usage with a compact footprint. The total square footage is 2,300 sqft with 4 bedrooms and 3 bathrooms.


It features a spacious master bedroom suite, a large kitchen with walk-in Pantry, a private office, an open-concept living and dining area, and 3 additional bedrooms for the family and kids.

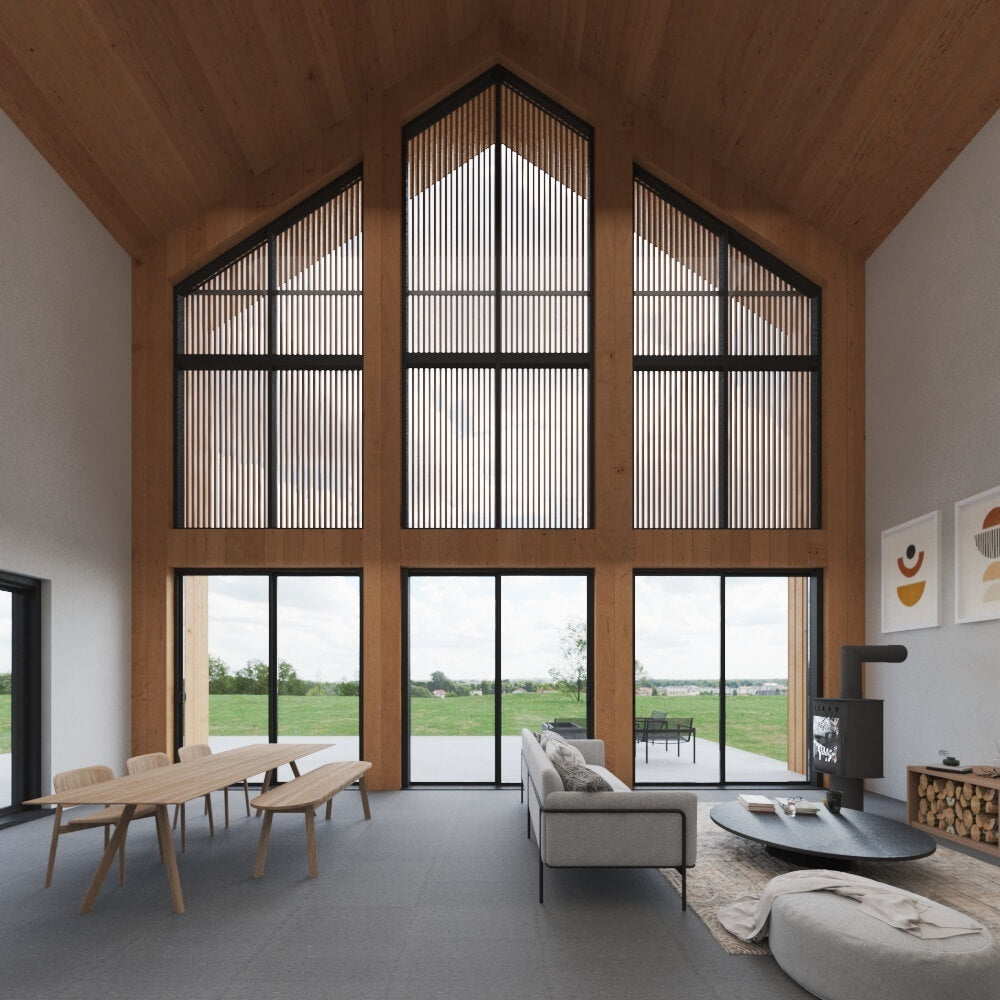

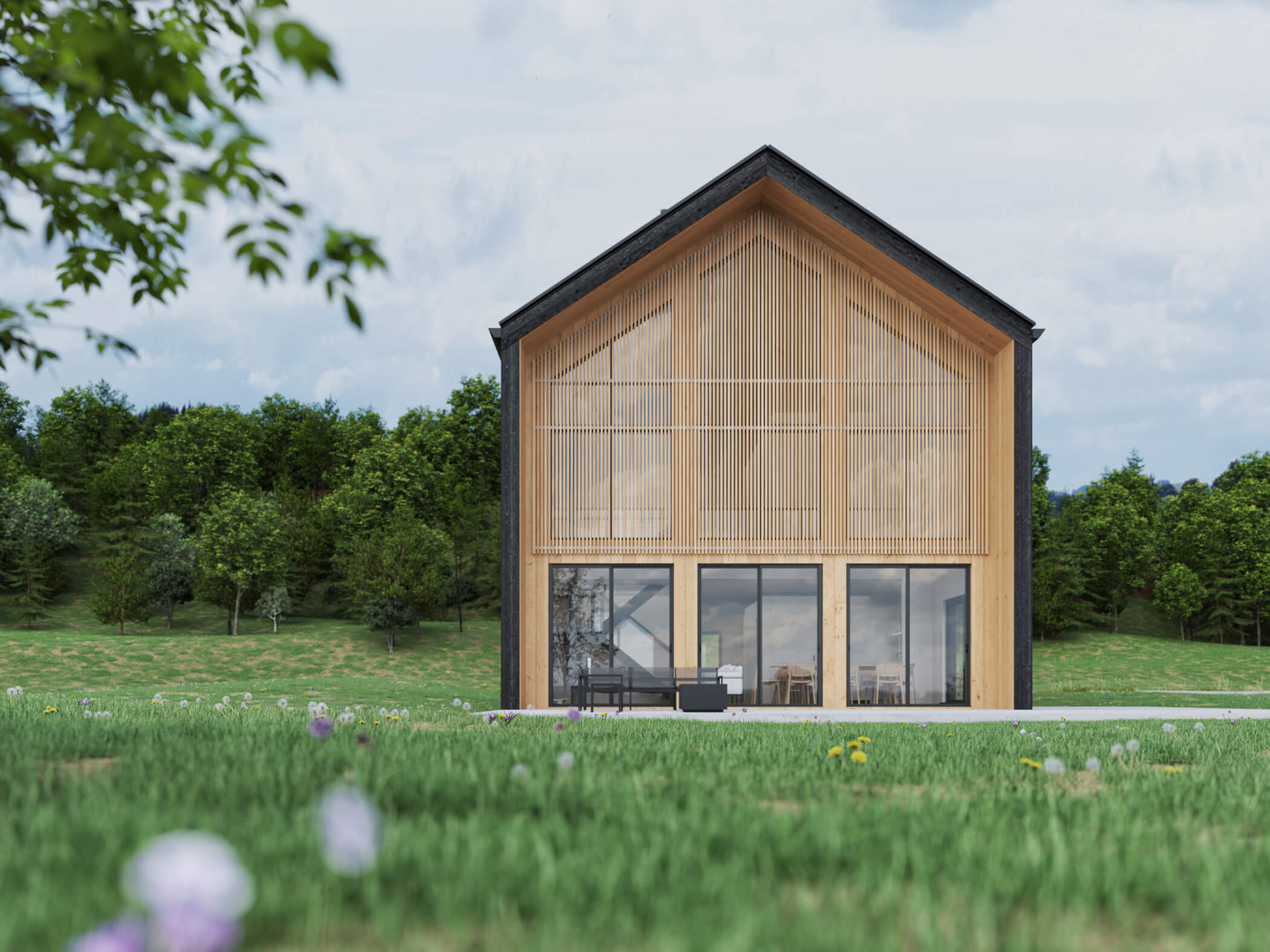

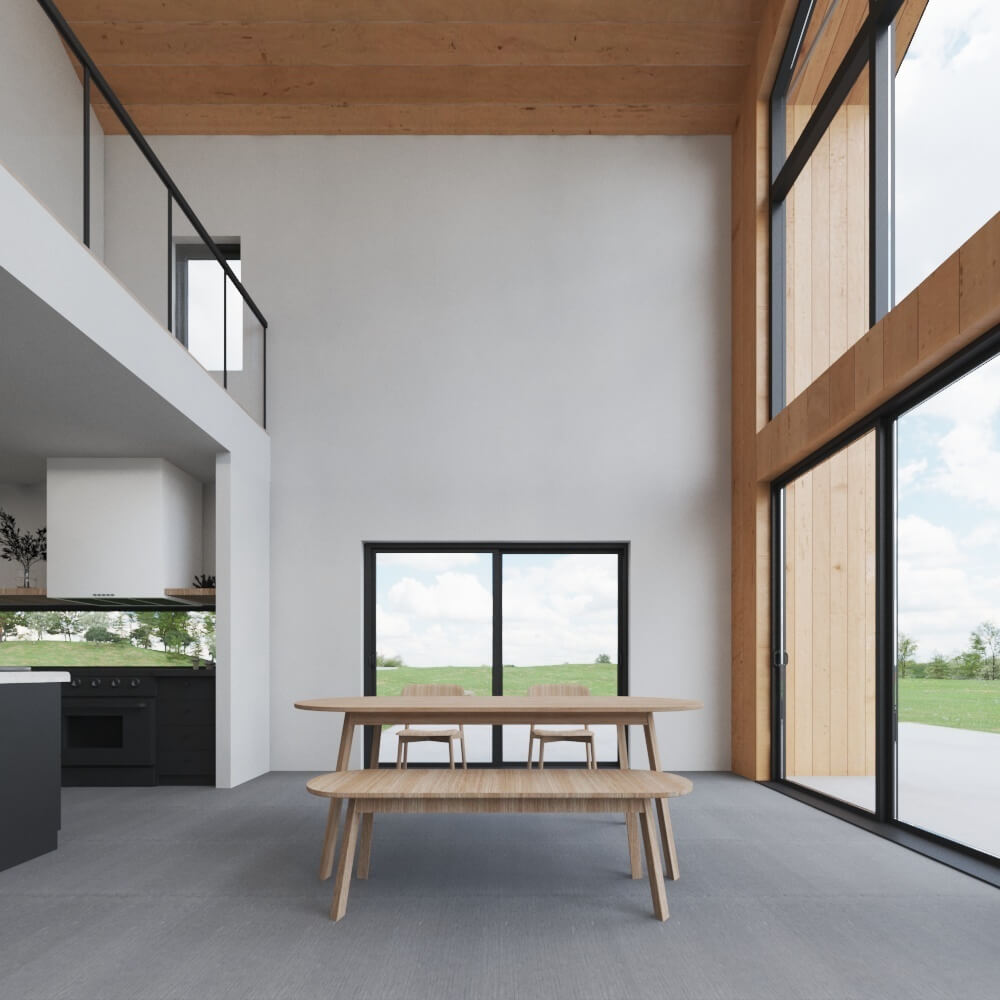

The living area has an open layout. The living room and dining area are located below the double-height ceiling. Double glass sliding doors provide a ton of natural light and views of the outdoors.

The master suite is located on the ground floor, away from all the other bedrooms. A walk-in closet and a spacious bathroom with twin vanities are part of then suite. The remaining bedrooms are adequately sized and include a wall of cabinets to hold all the clothing and toys.

On the second floor, there is another suite for guests or in-laws. It has its own small closet and a compact bath. The two children's rooms are across the hall, and each can fit two single beds on both sides. The loft area can be used as a home office, a place to work out, a place for the kids to play or study, or any other space that best suits your family's needs. At the end of the second floor is a study & play area. It is away from the main living room for privacy and sounds purposed.

The FRANK Lake Brando plan is the ideal modern Barndominium house plan for both a vacation home and a primary residency.

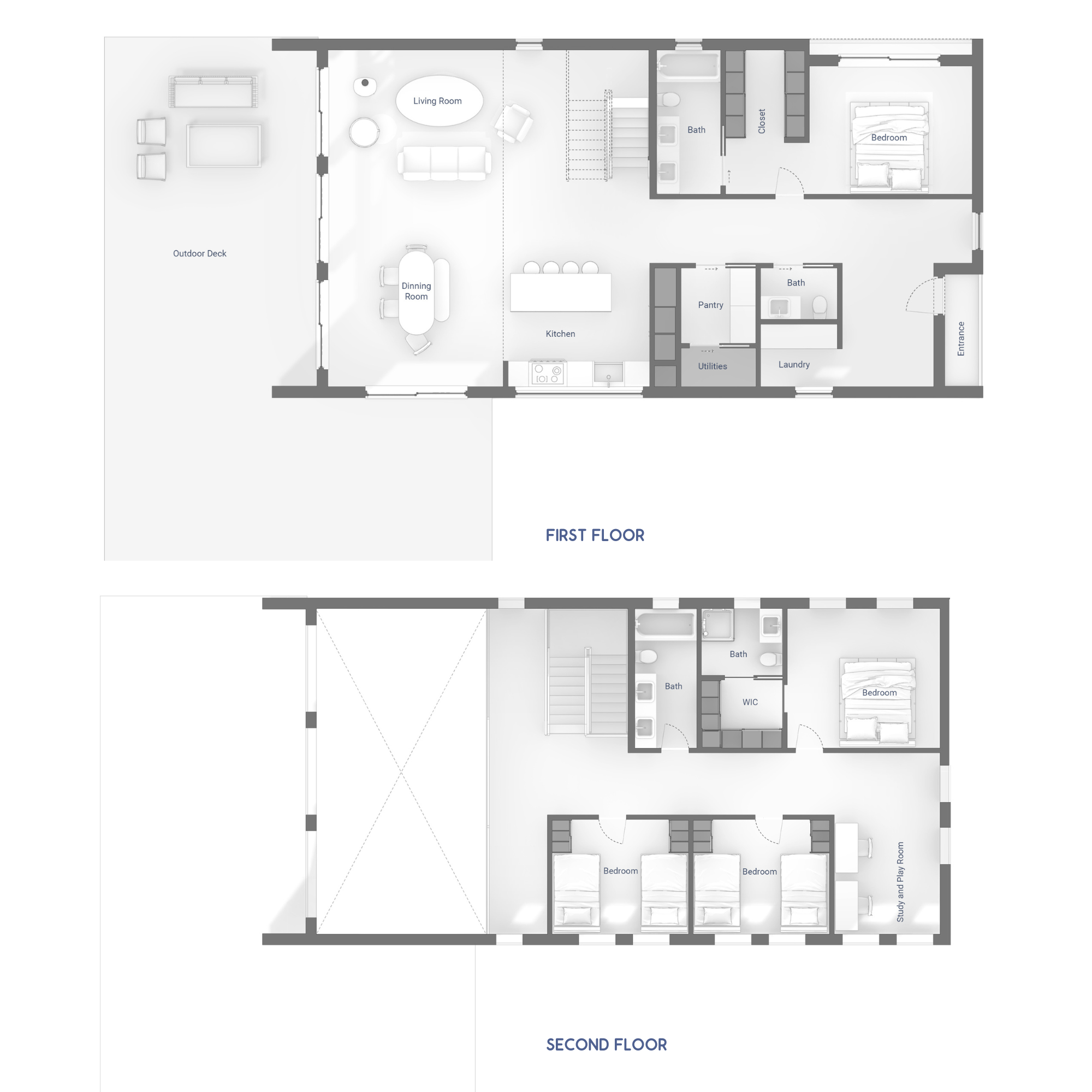

Ground floor: 1,289 sqft
Loft Floor: 955 sqft
Dimensions: 55'-6" L X 28' W X 27' H
Bedroom 1 size: 12'-8" L X 11' -3" W X 8'-6" H
Bedroom 2 size: 11' L X 9'-3" W X 12' H
Bedroom 3 size: 11' L X 9'-3" W X 12' H
Bedroom 4 size: 12'-8" L X 11'-3" W X 12' H
Office : 8'-6" L x 9' -7" W
Livingroom size: 13'-8" L X 12'-1" W
Dining room size: 13'-8" L X 12'-1" W
Kitchen size: 11'-5" L X 9'-3" W
Pantry size: 6'-10" L x 4'-5" W
Living room deck size: 13'-7" L x 41' W
Bathroom 1 size: 5' L x 11'-3" W
Bathroom 2 size: 5' L x 11'-3" W
Bathroom 3 size: 6'-2" L X 6'- 5" W
Laundry & Mud Room size: 4'-6" L x 9'-3" W

HVAC system: Mini-split, HRV, ERV

Photos of Customer Building a FRANK home

3BD Large House in Michigan

Photos of Customer Building a FRANK home

Lavender Loft in Michigan

Photos of Customer Building a FRANK home

3BD Ski Cabin in New Hampshire

The Green Small Home Exterior 2

Photos of Customer Building a FRANK home

1 BD Large House in New York

Progress with DIY home: trusses

Photos of Customer Building a FRANK home

1 BD MINI Cabin in Michigan

Floorplan Design Customization

Need to make changes? Our professional design team can provide customization services for our existing floorplans. We will provide a free price quote within 1 to 3 business days.

Submit a Design Request

What is included?

The Study Plans Includes:


• 9 - 15 sheets of Digital PDF Format Drawings
• Floorplans
• Exterior Elevations
• Building Sections
• Kitchen and Bathroom elevations
• Kitchen Cabinet chart
• Wall details with materials

* Easy upgrade. We will deduct the study set payment when you purchase the building plans.

Designed to help you take the first step toward building your green home, the drawing pack contains everything you need to make informed choices about your home. The drawing pack comes in a digital PDF file and includes 15 sheets of architectural drawings with detailed dimensions. This set can be used to get an exact cost estimate and inquire about the local permit process.

Note * The study set does not grant a license to the user to build the house using these plans. It is intended as a general inquiry and guide.
